Type Designator: FDD390N15ALZ
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 63 W
Maximum Drain-Source Voltage |Vds|: 150 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.8 V
Maximum Drain Current |Id|: 26 A
Maximum Junction Temperature (Tj): 150 °C
Total Gate Charge (Qg): 17.6 nC
Rise Time (tr): 9.3 nS
Drain-Source Capacitance (Cd): 93 pF
Maximum Drain-Source On-State Resistance (Rds): 0.042 Ohm

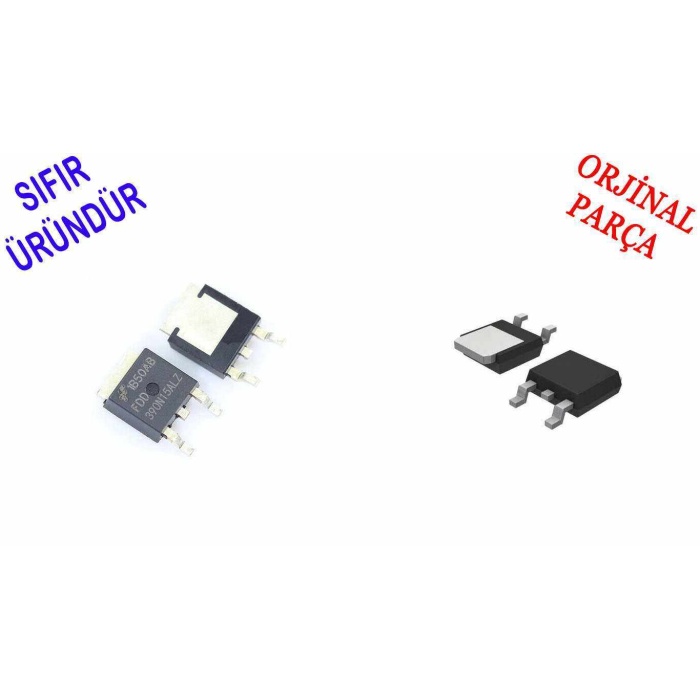

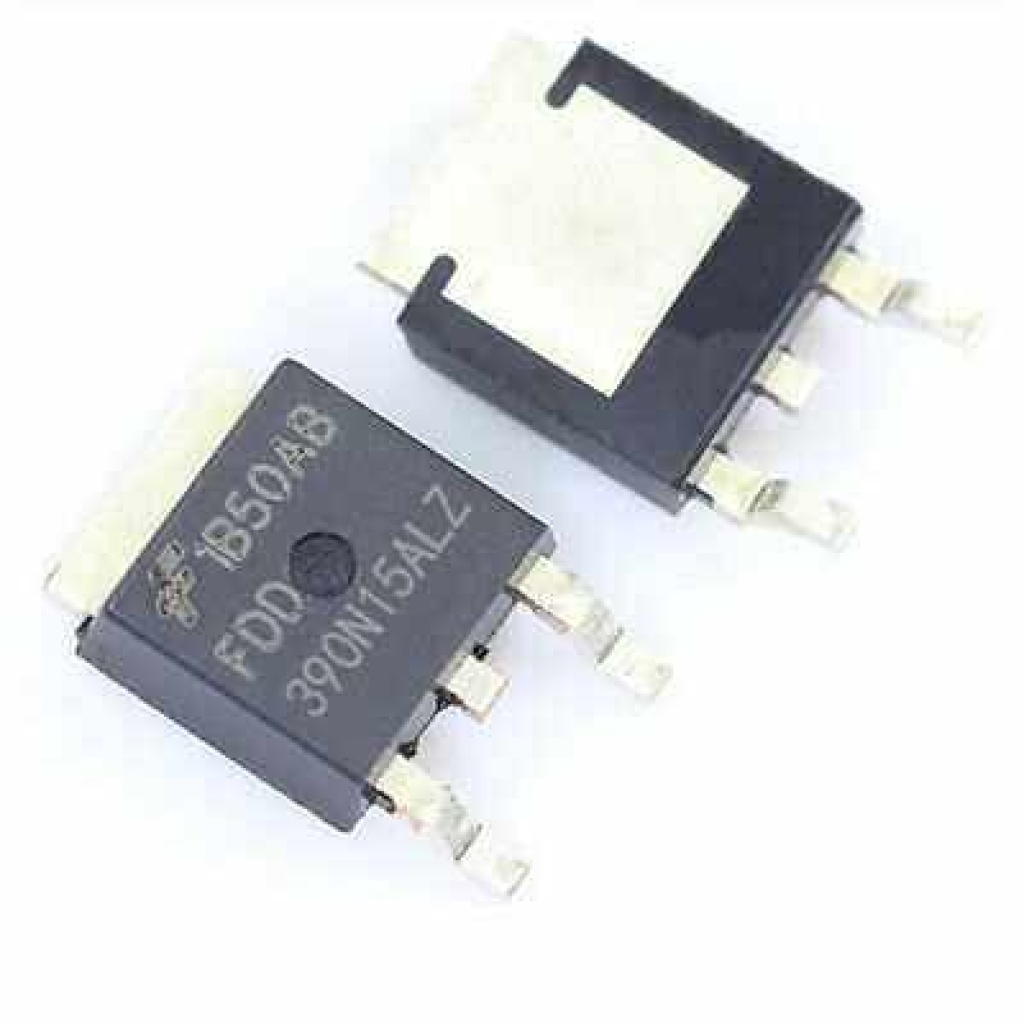

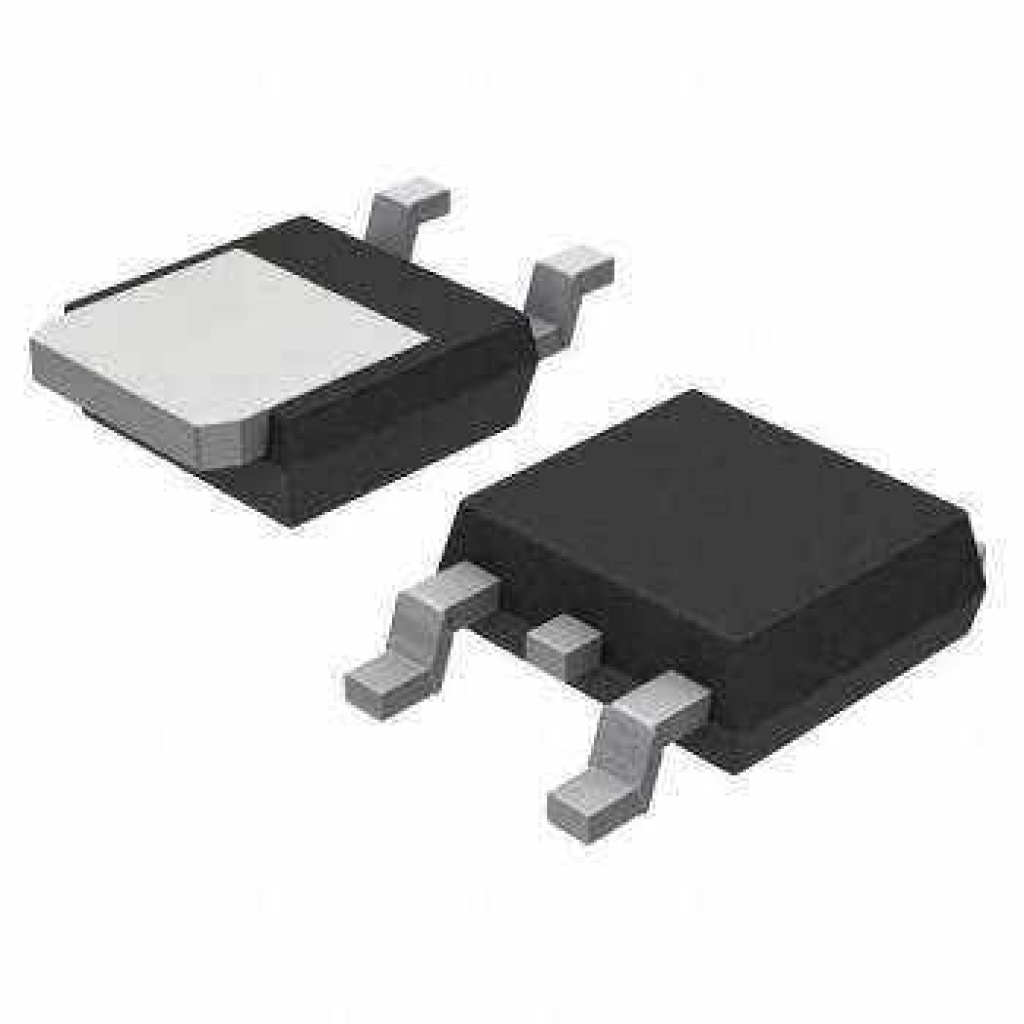

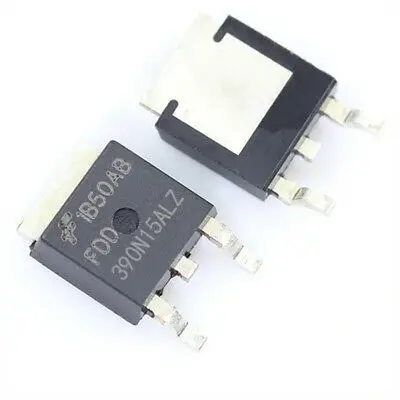

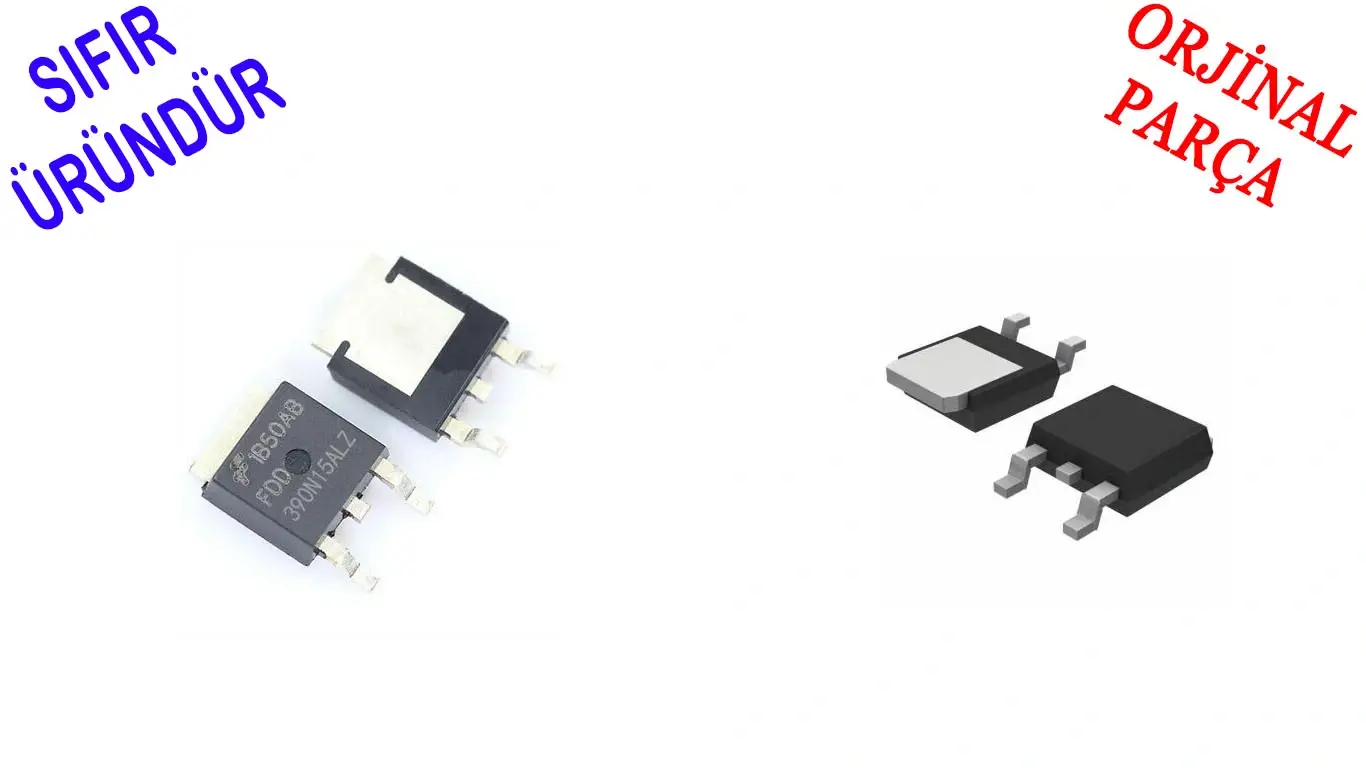

Package: TO252 DPAK
